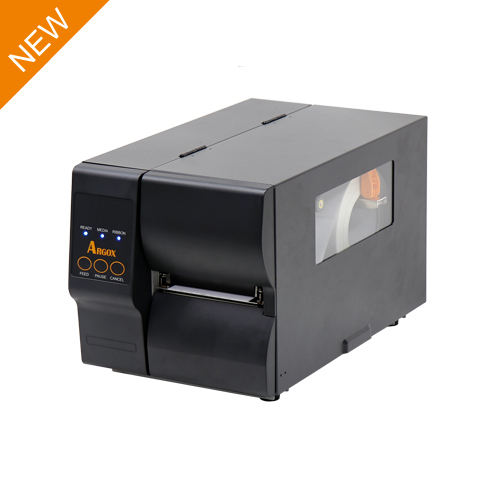

ARGOX IX4-240

Print Specifications iX4-240

• Printing Method Direct Thermal & Thermal Transfer
• Printing Resolution: 203 dpi (8 dots/mm)
• Printing Speed Max. 6 ips
• Printing Length: Max. 100”(2540 mm)
• Printing Width: 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
• CPU Type: 32 bit RISC microprocessor

Consumables Specifications

• Sensors: Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
• Media Type: Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
• Media Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core
• Ribbon Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length:max 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)

Fonts & Symbologies

• Fonts : Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
• 1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
• 2D Barcodes: QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
• Graphics : PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
• Emulation: PPLA, PPLB, PPLZ

Interface Characteristics and Integration

• Operation Interface: LED indicator x 3, Button x 3
• Communication Interface: USB device, RS-232, Ethernet, USB host x 2
• Software-label Editing Windows Driver (Windows XP/Vista/Win7/Win8/Win10), BarTender® from Seaguall Scientific
• Software-Utility Printer Tool

Operating & Environment Characteristics Power Source Internal

• Power Source: Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
• Operation Environment: Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C
• Agency Listing CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI

Physical Characteristics

• Printer Dimensions: W 250 mm x H 263 mm x D 418 mm
• Printer Weight : 24lbs (11 kg)
